What was the first digital-analog hybrid?

Discussions about anything analog, digital, MIDI, synth technology, techniques, theories and more.
GameChanger
Junior Member
Junior Member
Posts: 193
Joined: Sun Feb 21, 2010 9:18 am
Gear: MPC60

What was the first digital-analog hybrid?

Post by GameChanger » Tue Oct 19, 2010 8:20 pm

Sorry for my lack of synth knowledge, but was just wondering about this. What was the first digital-analog hybrid synth?

memory cords
Junior Member
Junior Member
Posts: 172
Joined: Tue Feb 16, 2010 3:48 pm

Re: What was the first digital-analog hybrid?

Post by memory cords » Tue Oct 19, 2010 8:26 pm

GameChanger wrote:Sorry for my lack of synth knowledge, but was just wondering about this. What was the first digital-analog hybrid synth?
I think it was the PPG Wave?

You can see Edgar Froese playing one in the clip below:



I guess many people would also consider the Fairlight CMI an early digital synth though technically it is a sampler. But it was definitely used by a lot of 70's and 80's synth artists (Jean Michel Jarre, Jan Hammer, Peter Gabriel, Kate Bush, Cabaret Voltaire, Coil etc). The E-mu Emulator series also which have digital waveforms with analog filters...

User avatar
moremagic
Active Member
Active Member
Posts: 314
Joined: Mon Dec 28, 2009 9:29 am
Real name: A.M.
Gear: electribe er-1, sp-303, sp-404sx, s612, nuo 2, sl-1200 mk ii, beatstep, eurorack, tb-03, vx-99
Location: nc

Re: What was the first digital-analog hybrid?

Post by moremagic » Wed Oct 20, 2010 8:39 pm

I downloaded the P5 rev 3 user manual the other day and was reading it, and it refers to the Prophet-5 as a hybrid synth because of the digital control and patch storage! :lol:

User avatar
Phollop Willing PA
Senior Member
Senior Member
Posts: 840
Joined: Sun May 04, 2008 3:47 pm
Gear: Korg, Moog, Roland, Alesis, ARP, Yamaha, Future Retro
Location: Nova Scotia

Re: What was the first digital-analog hybrid?

Post by Phollop Willing PA » Wed Oct 20, 2010 8:47 pm

Technically, wouldn't it be one of those 1950s synth that use punch cards to program them? I mean, those use on/off info, like digital synths do. Or is that stretching it?


MOOGSig: Voyager/Theremin, ROLAND: JP8000/MC505/MC50/SH1000/Octapad1/RE 20, CASIO VLtone, KORG: Prophecy/MS2000R/Kaos Pad2/D3200/D888/SDD4000/M3, BOSS SP202/DR110, YAMAHA:CS40M/QX7/WX7/QY10/Reface DX, ARP Exp, MACBETH M5, FR ORB, SONNET, ALESIS SR18

User avatar
nathanscribe
VSE Review Contributor
VSE Review Contributor
Posts: 2889
Joined: Fri Aug 11, 2006 1:03 pm
Location: The right side of the Pennines
Contact:

Re: What was the first digital-analog hybrid?

Post by nathanscribe » Wed Oct 20, 2010 11:44 pm

It depends what parts you want to refer to by "digital". Many analogue synths (both monos and polys) use digital circuits for keyboard scanning, voice allocation and patch storage. I presume you're referring to digital waveforms followed by analogue filters etc.

As for PPG, the Wave was not the first; Palm's 1020 monosynth was earlier, followed by the Sonic Carrier.

User avatar
cornutt
Moderator
Moderator
Posts: 2117
Joined: Sun Dec 02, 2007 6:03 am
Gear: 6th
Location: Rocket City USA
Contact:

Re: What was the first digital-analog hybrid?

Post by cornutt » Thu Oct 21, 2010 3:31 am

Phollop Willing PA wrote:Technically, wouldn't it be one of those 1950s synth that use punch cards to program them? I mean, those use on/off info, like digital synths do. Or is that stretching it?

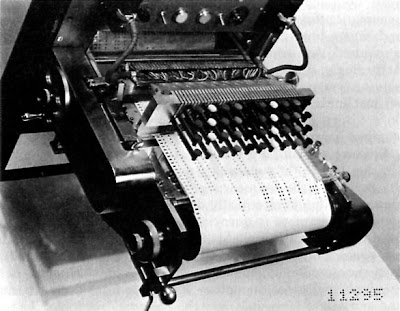

That's the RCA Synthesizer in the pic... I'm pretty certain that it did not do any digital sound generation or processing; it only used digital data for control. It was more like a '50s version of a P5.

There were people doing digital synthesis with PDP-8's and 11's in the 1960s. Some of them did some analog post processing, but I think it was more of the nature of "fix it in the mix", since those systems were not capable of doing the digital synthesis in real time.
Switches, knobs, buttons, LEDs, LCD screens, monitors, keys, mice, jacks, sockets. Now two joysticks!

Ashe37
Moderator
Moderator
Posts: 3790
Joined: Mon Jan 19, 2009 3:43 pm
Real name: Unpronounceable
Gear: Ensoniq SD-1/32,SQR,VFX,ESQm
Virus Indigo, M3-61 , MS2000BR, Volca Bass
Emu XL-7, Matrix 6r
TG-33, K3m, Blofeld, Micron, Mopho, BS II, JV-1080
Band: Eridani V
Location: Central VA

Re: What was the first digital-analog hybrid?

Post by Ashe37 » Thu Oct 21, 2010 4:06 am

and some people say that DCO synths are hybrids as well, so its a matter of specifics.

User avatar
Stab Frenzy
Moderator
Moderator
Posts: 9723
Joined: Tue Jun 06, 2006 5:41 pm
Gear: Eurorack, RYTM, Ultranova, many FX
Location: monster island*
Contact:

Re: What was the first digital-analog hybrid?

Post by Stab Frenzy » Thu Oct 21, 2010 4:21 am

GameChanger wrote:What was the first digital-analog hybrid synth?
Define digital-analogue hybrid synth first, and then someone can answer your question.

GameChanger
Junior Member
Junior Member
Posts: 193
Joined: Sun Feb 21, 2010 9:18 am
Gear: MPC60

Re: What was the first digital-analog hybrid?

Post by GameChanger » Thu Oct 21, 2010 1:05 pm

Stab Frenzy wrote:
GameChanger wrote:What was the first digital-analog hybrid synth?
Define digital-analogue hybrid synth first, and then someone can answer your question.
I was thinking more along the lines of what keyboard/s started the digital analog hybrids of the 80s. Digital Waveforms, but Analog Filters, Evelopes, Etc.

User avatar
Phollop Willing PA
Senior Member
Senior Member
Posts: 840
Joined: Sun May 04, 2008 3:47 pm
Gear: Korg, Moog, Roland, Alesis, ARP, Yamaha, Future Retro
Location: Nova Scotia

Re: What was the first digital-analog hybrid?

Post by Phollop Willing PA » Thu Oct 21, 2010 2:19 pm

From http://documentation.apple.com/en/logic ... tasks=true

I found the following:

Digital Synthesizers

....

The breathtaking developments in the digital world are best illustrated by the following example. The first program that emulated sound generation entirely by means of a computer was Music I, authored by the American programmer Max Mathew. Invented in 1957, it ran on a university mainframe, an exorbitantly expensive IBM 704. Unimpressively, its sole claim to fame was that it could compute a triangle wave, although doing it in real time was beyond its abilities.

This lack of capacity for real-time performance is the reason why early digital technology was used solely for control (and storage) purposes in commercial synthesizers. Digital control circuitry debuted in 1971 in the form of the digital sequencer found in the Synthi 100 modular synthesizer—in all other respects an analog synthesizer—from English company EMS. Priced out of reach of all but the wealthiest musicians, the Synthi 100 sequencer featured a whopping total of 256 events.

....
MOOGSig: Voyager/Theremin, ROLAND: JP8000/MC505/MC50/SH1000/Octapad1/RE 20, CASIO VLtone, KORG: Prophecy/MS2000R/Kaos Pad2/D3200/D888/SDD4000/M3, BOSS SP202/DR110, YAMAHA:CS40M/QX7/WX7/QY10/Reface DX, ARP Exp, MACBETH M5, FR ORB, SONNET, ALESIS SR18

User avatar
Micke
Synth Explorer
Synth Explorer
Posts: 2329
Joined: Sat Sep 18, 2004 12:50 pm
Location: Sweden

Re: What was the first digital-analog hybrid?

Post by Micke » Thu Oct 21, 2010 4:55 pm

nathanscribe wrote:It depends what parts you want to refer to by "digital". Many analogue synths (both monos and polys) use digital circuits for keyboard scanning, voice allocation and patch storage. I presume you're referring to digital waveforms followed by analogue filters etc.

As for PPG, the Wave was not the first; Palm's 1020 monosynth was earlier, followed by the Sonic Carrier.
Everything on the Sonic Carrier (1976) seems to have been Digitally controlled, incl. the filter. However I'm not sure whether
the oscillators were actually digitally generated or just DCO's! Anyone knows for sure?
"The (Yamaha) CS-80 is a step ahead in keyboard control, and a generation behind in digital control" -- Dan Wyman, Jan 1979

User avatar
calyx93
Active Member
Active Member
Posts: 448
Joined: Tue Aug 16, 2005 5:48 am
Gear: PPG Wave 2.2, Waldorf μWave x3, Roland JP6+V-Synth, SCI P5+600, Ensoniq SQ-80, Kawai K-3
Location: Winston-Salem, NC

Re: What was the first digital-analog hybrid?

Post by calyx93 » Thu Oct 21, 2010 5:57 pm

Fairly certain it was the PPG 1020 - don't own one, but all I've ever read or heard about them is that it was Palm's first synth to use digital oscillators.

I'm curious about the RMI KC1 - if it utilized any analog processing after the digital waves (analog VCA/ENV), it would be an even earlier hybrid - 1974.
“I have stretched ropes from steeple to steeple; garlands from window to window; golden chains from star to star, and I dance.” - Rimbaud

User avatar
Phollop Willing PA
Senior Member
Senior Member
Posts: 840
Joined: Sun May 04, 2008 3:47 pm
Gear: Korg, Moog, Roland, Alesis, ARP, Yamaha, Future Retro
Location: Nova Scotia

Re: What was the first digital-analog hybrid?

Post by Phollop Willing PA » Thu Oct 21, 2010 6:37 pm

calyx93 wrote:Fairly certain it was the PPG 1020 - don't own one, but all I've ever read or heard about them is that it was Palm's first synth to use digital oscillators.

I'm curious about the RMI KC1 - if it utilized any analog processing after the digital waves (analog VCA/ENV), it would be an even earlier hybrid - 1974.
Also from: http://documentation.apple.com/en/logictasks=true

"Ever-increasing processor performance made it possible to integrate digital technology into parts of the sound generation engine itself. The monophonic Harmonic Synthesizer, manufactured by Rocky Mountain Instruments (RMI), was the first instrument to do so. This synthesizer had two digital oscillators, combined with analog filters and amplifier circuits.

"The Synclavier, introduced in 1976 by New England Digital Corporation (NED), was the first synthesizer with completely digital sound generation. Instruments like the Synclavier were based on specialized processors, which had to be developed by the manufacturers themselves. This development cost made the Synclavier an investment that few could afford."
MOOGSig: Voyager/Theremin, ROLAND: JP8000/MC505/MC50/SH1000/Octapad1/RE 20, CASIO VLtone, KORG: Prophecy/MS2000R/Kaos Pad2/D3200/D888/SDD4000/M3, BOSS SP202/DR110, YAMAHA:CS40M/QX7/WX7/QY10/Reface DX, ARP Exp, MACBETH M5, FR ORB, SONNET, ALESIS SR18

User avatar
Micke
Synth Explorer
Synth Explorer
Posts: 2329
Joined: Sat Sep 18, 2004 12:50 pm
Location: Sweden

Re: What was the first digital-analog hybrid?

Post by Micke » Thu Oct 21, 2010 7:48 pm

I dunno about the monophonic RMI Harmonic synth, but to the best of my knowledge there are no filters
nor ADSR's in the RMI KC-I & KC-II. The waveshaping, like the envelope shaping, is done with the units computer.

The incredibly rare Strider systems DCS-1 & II polyphonics were also digital/analog hybrids I think.
"The (Yamaha) CS-80 is a step ahead in keyboard control, and a generation behind in digital control" -- Dan Wyman, Jan 1979

User avatar
vin14
Junior Member
Junior Member
Posts: 146
Joined: Tue May 19, 2009 7:07 pm
Gear: ∂Juno1 / BassStation Rack / CS-5 / D-50 / DX7 / Juno-106 / M1 / Minibrute / SK20 / SY85 / Trident / Voyager OS / Minimonsta / ImpOSCar
Band: oddball
Location: Ireland
Contact:

Re: What was the first digital-analog hybrid?

Post by vin14 » Thu Oct 21, 2010 9:31 pm

Was it the WASP?
