Roland D10 connector disconnect

Posted: Fri Mar 16, 2018 12:40 pm
by daT0nkee
Dear all,

I have a little problem disconnecting the white connectors on the Roland D10 main board.
Do anyone knows how to do this?

Happyness,

Re: Roland D10 connector disconnect

Posted: Sat Mar 17, 2018 11:54 am
by charles
hi ,,I have 2 d10 ,,which connector the white ribbon cable or the white flex shield ribbon?

Re: Roland D10 connector disconnect

Posted: Sat Mar 17, 2018 1:40 pm
by daT0nkee
"which connector?

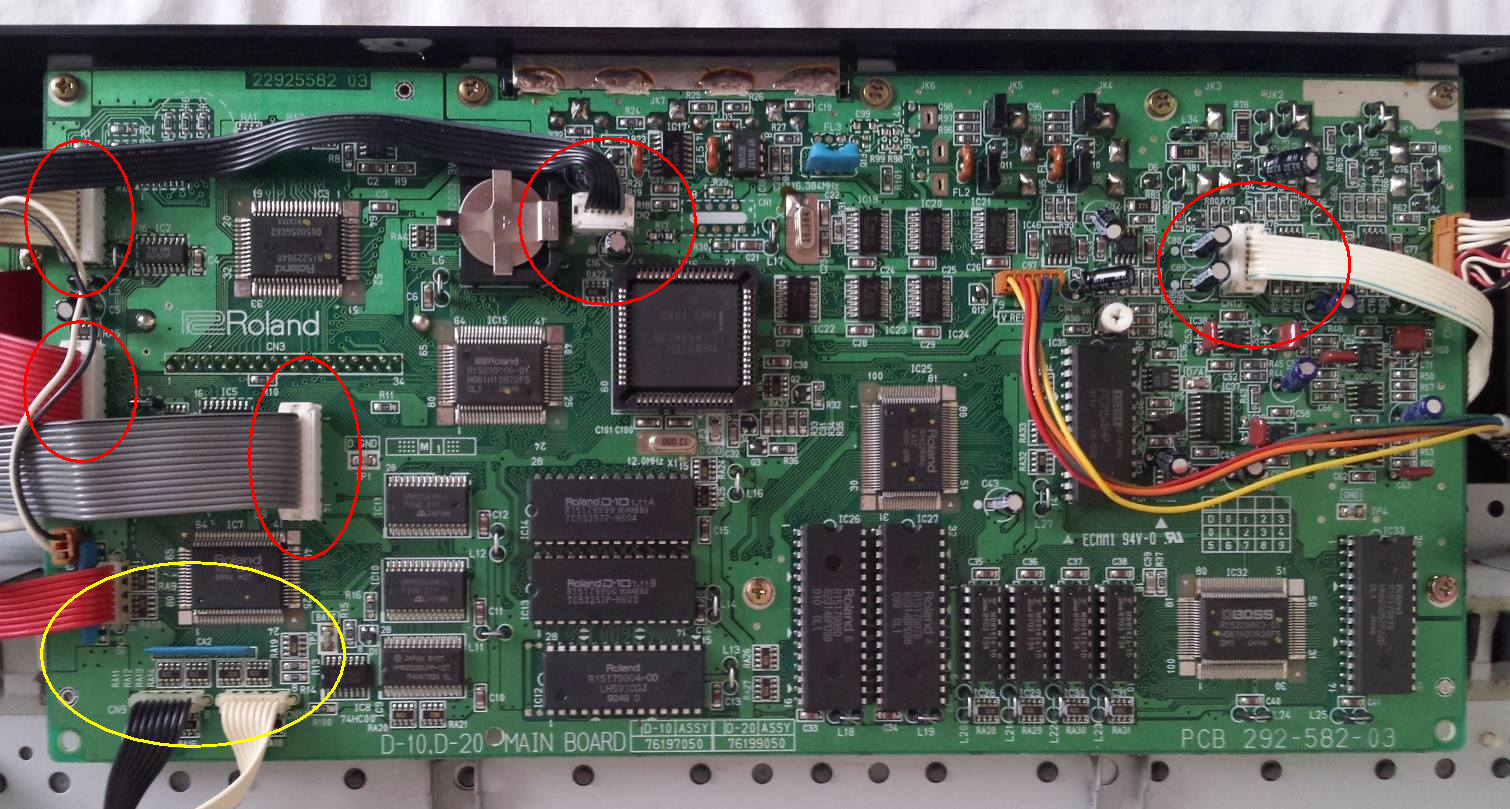

The red ellipse marked ones. I dont think the yellow marked connectors are disconnectable.


Re: Roland D10 connector disconnect

Posted: Tue Mar 20, 2018 10:51 pm
by charles
I know how to do it barbarian style ...hence not sure what the correct tool is for the job ,,,,,these are a type of clamp connector...if you can visualise a horizontal guillotine which doesn't quite cut all the way that's exactily how these connectors chambers grasp the wire .....so once you pull up the outer plastic shield..held down by small tabs on the sides of the connector it frees the grasp on the wires,,,typically I kinda warm up the plastic mildily and with a large safety pin deactivate the latch tabs which hold the plastic tops down .....

good luck these plastics are so brittle with their age .......most come out easily if I remember ..its been about 8 years since ive been in my d10/110 u20 etc I forget if they all come off or not

Re: Roland D10 connector disconnect

Posted: Sat Mar 24, 2018 7:02 pm
by Mr_Mojo_Risin
I think the the U-20 has a similar connector.
These are called Wire Trap Connectors are are appropriately named :evil:
It's not easily to see how these work at first glance.

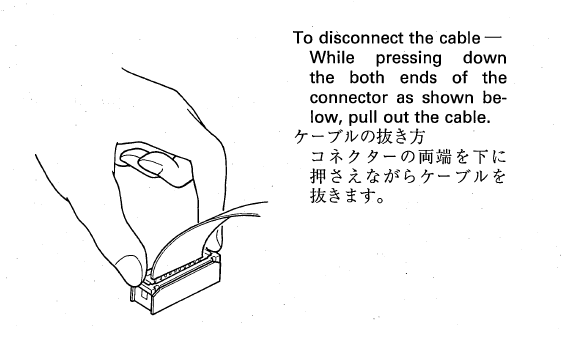

Press down on the top using a small flat-blade screwdriver and then pull the cable out.
Here is a link with a diagram showing how to disconnect those @!#%ing cables.
http://llamamusic.com/u20/u-20_info.html#strangeconn

Re: Roland D10 connector disconnect

Posted: Mon Mar 26, 2018 12:38 am
by charles
I have been known to be wrong ,,, think there are two types ?

mine didn't release the wires so I disassembled the two parts of the sheilding

Re: Roland D10 connector disconnect

Posted: Fri May 25, 2018 8:49 am
by daT0nkee
Oh, at least i was able to understand. My bad. And it was in the service manual too.
