dead alesis ion main output pre-amp FIXED!!
a week ago the master volume knob started getting finicky and only working in certain 'sweet' spots, like with old pots that need a cleaning, only the ions knobs are digital. then, the main volume outputs l/r and the headphone out 1/4" jacks all "died" shortly after. if i crank my amp, i can still hear the synth, but it seems the preamp for the main audio output is dead. although, my current fix is to route all the sounds to the auxiliary l/r outputs, which work fine albeit i cannot control the volume with the master volume knob now.
i would love to fix this, but problem is, seeing as this is a virtual analog, i bet the inside is mostly going to be circuit boards and chips with little wiring. i imagine this issue isn't going to be as simple as fixing a loose wire, so there isn't really an easy fix for me (i'm good with a soldering gun), like there would be on an older synthesizer.
any ideas? anyone know if any schematics for the ion exist?
or know of somewhere in the northeast US that repairs newer electronics like this?
i would love to fix this, but problem is, seeing as this is a virtual analog, i bet the inside is mostly going to be circuit boards and chips with little wiring. i imagine this issue isn't going to be as simple as fixing a loose wire, so there isn't really an easy fix for me (i'm good with a soldering gun), like there would be on an older synthesizer.
any ideas? anyone know if any schematics for the ion exist?
or know of somewhere in the northeast US that repairs newer electronics like this?
Last edited by danialad on Wed Mar 03, 2010 8:00 pm, edited 1 time in total.
[the gypsy moth project]
have: alesis ion, casiotone 403
had: akai ax-80, korg poly-800, roland juno-6, korg er-1,
alesis sr-16, yamaha tx802, korg dw/ex-8000, korg ms2000
have: alesis ion, casiotone 403
had: akai ax-80, korg poly-800, roland juno-6, korg er-1,
alesis sr-16, yamaha tx802, korg dw/ex-8000, korg ms2000
- Yekuku
- Active Member
- Posts: 729
- Joined: Tue Nov 18, 2008 11:29 am
- Gear: dk'tronics speech synthesizer :P
- Location: Greece
Re: dead alesis ion main output pre-amp HELP!
Hi,
about the low output problem, you should replace 2 Field Effects Transistors (FETs) labeled J111 (Q6 & Q7 at the schematics) , this is a common fault for both ION/MICRON.
You can buy 2 NTE468 FETs for direct replacement which wont cost more that 3$.
Soldering them can be tricky, it depends on your experience ...

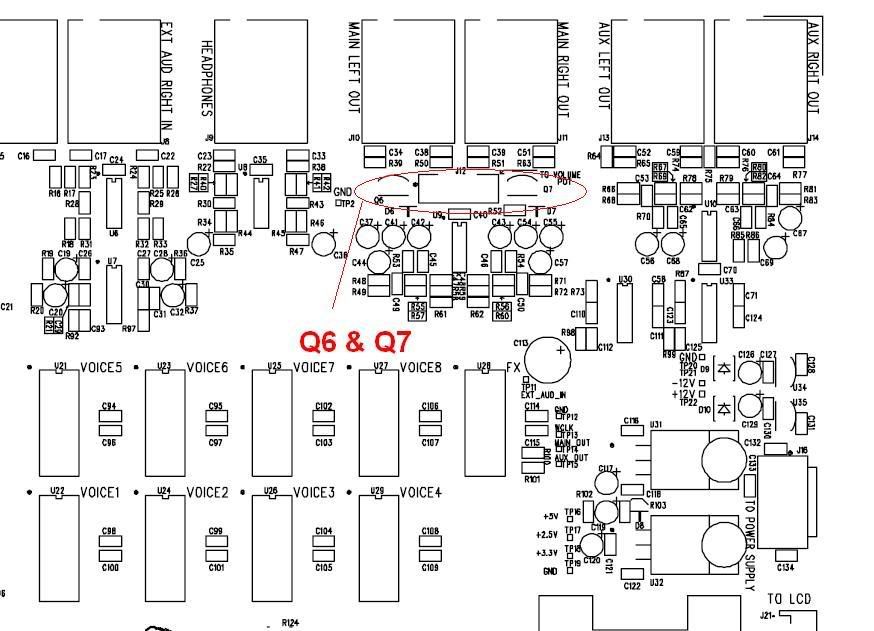

Here is where the fets are located :

I hope this helps.
about the low output problem, you should replace 2 Field Effects Transistors (FETs) labeled J111 (Q6 & Q7 at the schematics) , this is a common fault for both ION/MICRON.
You can buy 2 NTE468 FETs for direct replacement which wont cost more that 3$.
Soldering them can be tricky, it depends on your experience ...
Here is where the fets are located :

I hope this helps.
It is all about sharing...
- danialad
- Newbie
- Posts: 80
- Joined: Fri Feb 22, 2008 9:36 pm
- Real name: danial
- Gear: Alesis Ion
Casiotone 403 - Band: gypsy(moths)
- Location: Portland, ME
- Contact:
Re: dead alesis ion main output pre-amp HELP!
wow! excellent response. upon further google investigation, it appears it IS a common problem. and looks to be an easy fix for me, as i'm a crack with a soldering iron. already ordered two of 'em from newark.com for $1.44 apiece +$4 shipping. thank you so much!
- danialad
- Newbie
- Posts: 80
- Joined: Fri Feb 22, 2008 9:36 pm
- Real name: danial
- Gear: Alesis Ion
Casiotone 403 - Band: gypsy(moths)
- Location: Portland, ME
- Contact:
Re: dead alesis ion main output pre-amp HELP!
WELL! i got the replacement FETs, removed the old ones, and put in the new ones... and after THREE attempts the problem still isn't solved. i'm losing my mind here... i can't figure out what i did wrong!
[the gypsy moth project]
have: alesis ion, casiotone 403
had: akai ax-80, korg poly-800, roland juno-6, korg er-1,
alesis sr-16, yamaha tx802, korg dw/ex-8000, korg ms2000
have: alesis ion, casiotone 403
had: akai ax-80, korg poly-800, roland juno-6, korg er-1,
alesis sr-16, yamaha tx802, korg dw/ex-8000, korg ms2000
Re: dead alesis ion main output pre-amp HELP!
sorry to hear. i am the second owner of an alesis ion and so far no probs yet with this synth that you are having. i did have a dead second gkey but fixed that yesterday and it's working fine after cleaning the contacts. this main output issue, is it to be expected in the future? i'm a bit worried about this issue. hope i wont have to deal with this problem. is it due to lots of hours on the synth? can anyone give me more info to avoid this or will it happen evetualy? and how common is it? this sucks! thanks.
- Old Iron Giant
- Active Member
- Posts: 385
- Joined: Mon Jun 15, 2009 6:18 am
- Gear: Virus Ti2, Indig2, EmuXL7, Microkorg.
- Band: KHz+
- Location: Far Side of the moon
- Contact:
Re: dead alesis ion main output pre-amp HELP!
My ION suffered with the same problem.
replacing the Volume POT fixed my problem.
good luck.
replacing the Volume POT fixed my problem.
good luck.
Re: dead alesis ion main output pre-amp HELP!
so will this happen to me as well eventually?
- danialad
- Newbie
- Posts: 80
- Joined: Fri Feb 22, 2008 9:36 pm
- Real name: danial
- Gear: Alesis Ion
Casiotone 403 - Band: gypsy(moths)
- Location: Portland, ME
- Contact:
Re: dead alesis ion main output pre-amp HELP!
from what i can gather it happens randomly. took only 1 day for it to happen to me. and i've heard of units (both ion/micron) coming right from the box with the problem. just a cheap part i guess.
i suppose since i couldn't seem to fix it myself... for now i'll just have to use the Aux outs and ignore the main outs/main volume knob... then i'll have to go through each patch i want to use and assign them to the Aux outputs.
i suppose since i couldn't seem to fix it myself... for now i'll just have to use the Aux outs and ignore the main outs/main volume knob... then i'll have to go through each patch i want to use and assign them to the Aux outputs.
[the gypsy moth project]
have: alesis ion, casiotone 403
had: akai ax-80, korg poly-800, roland juno-6, korg er-1,
alesis sr-16, yamaha tx802, korg dw/ex-8000, korg ms2000
have: alesis ion, casiotone 403
had: akai ax-80, korg poly-800, roland juno-6, korg er-1,
alesis sr-16, yamaha tx802, korg dw/ex-8000, korg ms2000
Re: dead alesis ion main output pre-amp HELP!
sorry man- well, i have tested all my outs and all is good for now so that is a plus. we will see how long it lasts! are you going to try replacing the volume pot as iron giant did??
- danialad
- Newbie
- Posts: 80
- Joined: Fri Feb 22, 2008 9:36 pm
- Real name: danial
- Gear: Alesis Ion
Casiotone 403 - Band: gypsy(moths)
- Location: Portland, ME
- Contact:
Re: dead alesis ion main output pre-amp HELP!
i guess that's the next step to try. i'd love to get her working 100% again,
my next goal is paint her candy apple red (the sides are already black),
and then put some new custom labels on everything.
my next goal is paint her candy apple red (the sides are already black),
and then put some new custom labels on everything.
[the gypsy moth project]
have: alesis ion, casiotone 403
had: akai ax-80, korg poly-800, roland juno-6, korg er-1,
alesis sr-16, yamaha tx802, korg dw/ex-8000, korg ms2000
have: alesis ion, casiotone 403
had: akai ax-80, korg poly-800, roland juno-6, korg er-1,
alesis sr-16, yamaha tx802, korg dw/ex-8000, korg ms2000
Re: dead alesis ion main output pre-amp HELP!
cool. i do custom work myself. i have a black microkorg. about my ion, unfortunately, i noticed the Ion self editing tonight. the synth was idle. i left it with the preset sound name on the screen. went up stairs for about 15min then came down and the screen was on the filter screen? this happened two other times tonight. so i guess i got the self editing prob now. sucks! ......( just added ) I found out i have OS 1.00 in my ion. very old. i need to put OS 1.06 in my Ion asap! this may fix the bug i read.
- danialad
- Newbie
- Posts: 80
- Joined: Fri Feb 22, 2008 9:36 pm
- Real name: danial
- Gear: Alesis Ion
Casiotone 403 - Band: gypsy(moths)
- Location: Portland, ME
- Contact:
Re: dead alesis ion main output pre-amp HELP!
how do you find out what OS you have? i've been trying to get to that "config" or "quick test" menu but it doesn't do it. you hold down the < > menu keys while turning it on right?
also for Iron Giant...
what part did you use to replace the volume knob? and when you had the volume issue, could you still use the Aux outputs?
also for Iron Giant...
what part did you use to replace the volume knob? and when you had the volume issue, could you still use the Aux outputs?
[the gypsy moth project]
have: alesis ion, casiotone 403
had: akai ax-80, korg poly-800, roland juno-6, korg er-1,
alesis sr-16, yamaha tx802, korg dw/ex-8000, korg ms2000
have: alesis ion, casiotone 403
had: akai ax-80, korg poly-800, roland juno-6, korg er-1,
alesis sr-16, yamaha tx802, korg dw/ex-8000, korg ms2000
- danialad
- Newbie
- Posts: 80
- Joined: Fri Feb 22, 2008 9:36 pm
- Real name: danial
- Gear: Alesis Ion
Casiotone 403 - Band: gypsy(moths)
- Location: Portland, ME
- Contact:
Re: dead alesis ion main output pre-amp HELP!
HA! okay. so i got to the configuration menu, and when you go to the last page there is the "pot sensitivity test". guess which one doesn't show up... the volume pot! but, now i'm curious, is it even supposed to? can anyone confirm that this shows up on their Ion "configuration test"?? just hold down the < > arrows, a menu will pop up with all the LEDs lit, go to the last page... wiggle your volume knob and tell me if it shows up like the others do!
thanks!
thanks!
[the gypsy moth project]
have: alesis ion, casiotone 403
had: akai ax-80, korg poly-800, roland juno-6, korg er-1,
alesis sr-16, yamaha tx802, korg dw/ex-8000, korg ms2000
have: alesis ion, casiotone 403
had: akai ax-80, korg poly-800, roland juno-6, korg er-1,
alesis sr-16, yamaha tx802, korg dw/ex-8000, korg ms2000
- Old Iron Giant
- Active Member
- Posts: 385
- Joined: Mon Jun 15, 2009 6:18 am
- Gear: Virus Ti2, Indig2, EmuXL7, Microkorg.
- Band: KHz+
- Location: Far Side of the moon
- Contact:
Re: dead alesis ion main output pre-amp HELP!
Here's a link to the Alesis ION's service manual. you will find any part-number needed.
http://www.statikcatstudio.com/ION-Q01-SCHEMATICS.pdf
Yes the JFET and volume POT do not effect the AUX out.
unfortunately by using the AUX out, your loosing out on the ION's on-board FXs.
---
I think you've found the problem.
mine did the same thing prior to replacing the POT.
http://www.statikcatstudio.com/ION-Q01-SCHEMATICS.pdf
Yes the JFET and volume POT do not effect the AUX out.
unfortunately by using the AUX out, your loosing out on the ION's on-board FXs.
---
I think you've found the problem.
mine did the same thing prior to replacing the POT.
Last edited by Old Iron Giant on Thu Feb 25, 2010 3:41 am, edited 1 time in total.
Re: dead alesis ion main output pre-amp HELP!
to find out what OS version you have..1. hold down panel active a button and 2. panel active d button at the same time while turning off and on the synth. i have an old OS. need to get that updated asap.
