Alpha Juno 2. Only noise is coming out of the DCO

Post by Yekuku » Tue Mar 15, 2011 9:40 pm

Hi guys,
I could not resist my GAS so I bought a defective alpha juno 2 hoping that I could repair it easily .
The previous owner was experiencing power interruptions due to a faulty power cable and some weird noise on the outputs.
He took the unit to a technician where it was diagnosed as having a "faulty" main board , so he offered it to me for a fair price.
I fixed the power cable and I noticed this strange behaviour:
Everything works as expected except the sound of the oscillators, only noise is produced.
When I turn all oscillators off and press a key, noise is triggered.By increasing the volume of Pulse or Saw there is no tonal change to the noise sound , but when I increase the volume of Noise OSC the noise gets dirtier.
The noise is passed through the VCF and ENV/LFO which are working ok. By the way I just realized that u can get some pretty cool sounds by using only Noise/VCF/ENV :D
I checked the power supply and it works up to specs.
By checking the schematics, I am thinking that IC5 ( Roland custom DCO) could be faulty.
Also as Pro5 informed me in another thread, the gate array ( IC18) is a common suspect.
Unfortunatelly i dont have an oscilloscope yet, I am using just a multimeter which is PITA.
Any guidance or thoughts about where to start / what to check would be appreciatted.

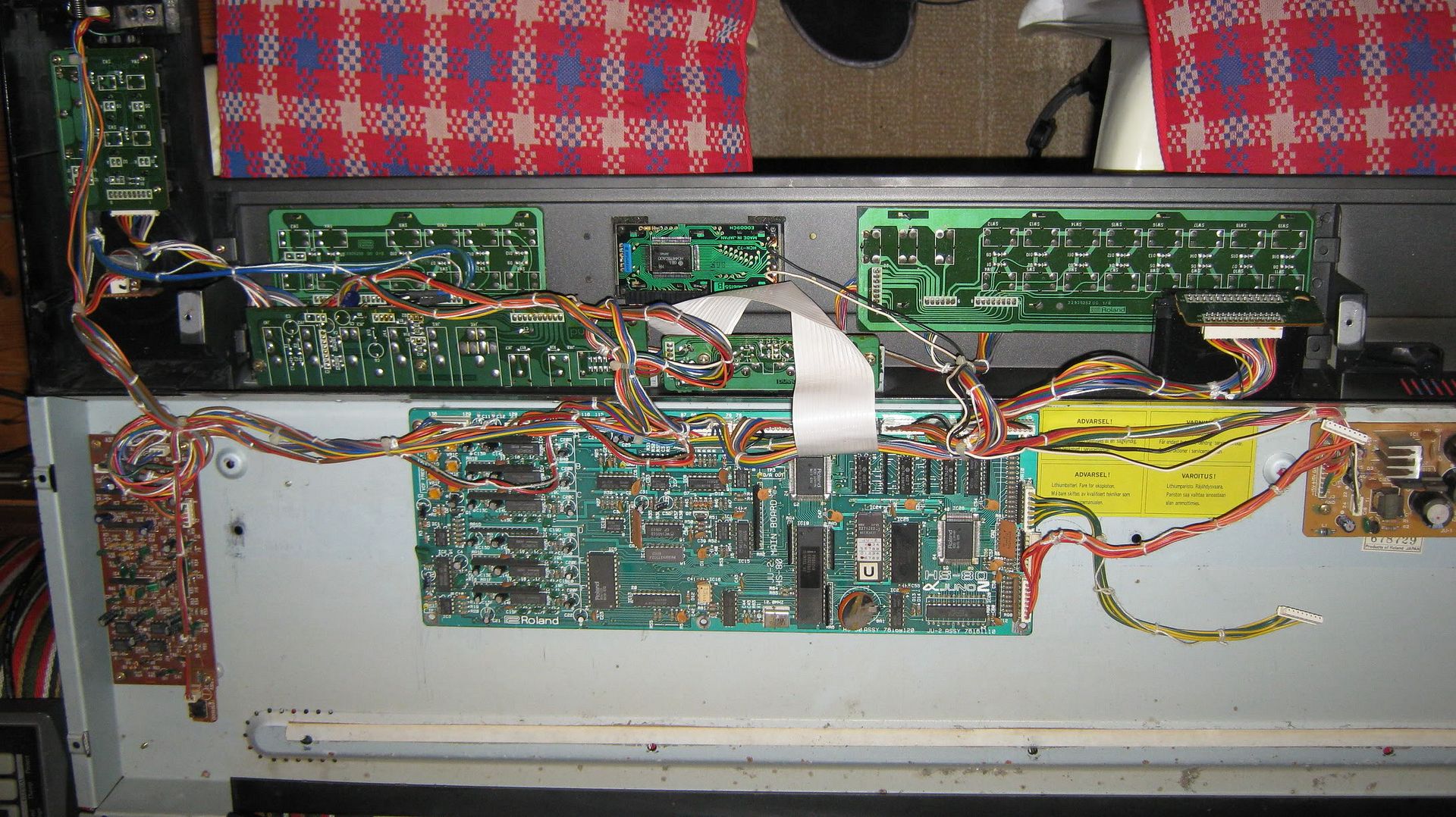

here are the schematics and a pic of the board:
Thanks in advance

EDIT:
I noticed that IC5(DCO) has six analog ouputts OUT0-OUT5 that feed the 6 seperate VCF sections.
Since filtering is working properly, this should be my starting point. By checking/listening to pins OUT0-OUT5 I should be able to "hear" the audio signal. Is this possible by using only a multimeter ? Can I use a small speaker?
My guessing is that even if I find a way to listen to OUT0-OUT5 , the same noise will be present.
So is it IC5 faulty or could be that IC18 (Gate Array that sends DCO signal to IC5) is malfunctioning and IC5's operation gets affected? Could it be that some other faulty components affect IC5s operation ?
Any help would be appreciated.
