I.W. Turner synth modules- pics and info

Post by Alex E » Tue Oct 09, 2007 9:37 pm

One of my cool finds at school. These little modules resembe the ARP educational modular synthesizer lab but aren't nearly as exciting. You can't even control them with a keyboard. These are extremely rare. I could only find a mention of the company on a resume on the web.

They all work to some extent. They're output is really low so I had to crank up the gain on my mixer to hear them.

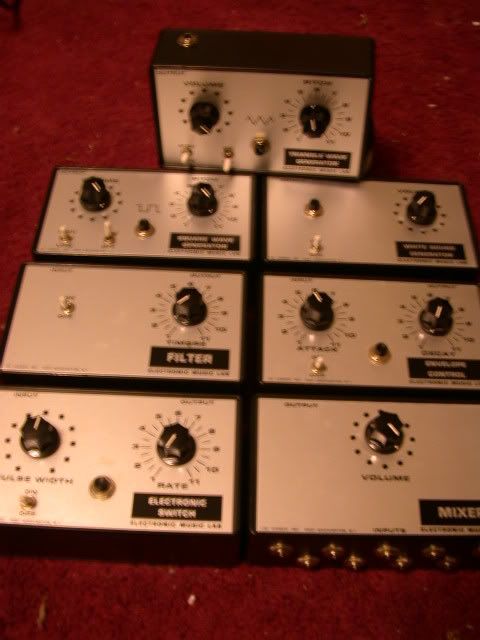

These are all the modules I could find and they seem to be a complete set. Almost all modules have an input and output for signal flow. The "Electronic switch" is a slow amplitude modulator. You can adjust the pulse width of the modulation with a knob. It's hard to read it but the top right one is a white noise generator.

________________________________________________

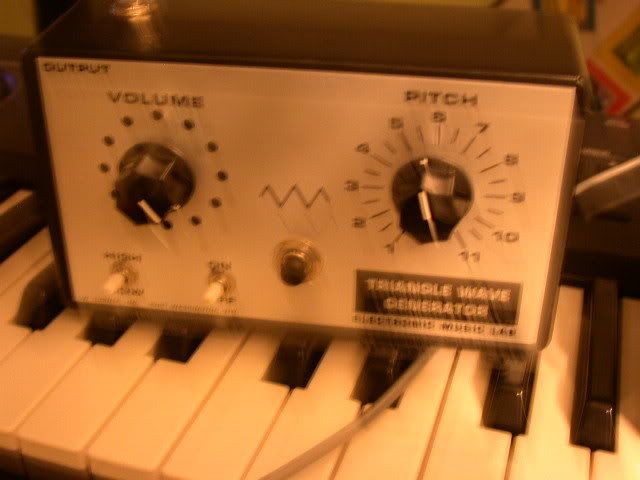

There are 2 oscillators: A square wave generator and a tri wave generator. Each functioned the same way: you flip it on, the button can complete the circuit if its off, and then it will turn on, and you can control the frequency of the oscillator on a very large scale with a pot. It has two settings: High and Low, for pitch. This is the triangle wave generator:
________________________________________________
The inside of each module is pretty simple; a tiny circuit board with a chip on it protected by a little piece of styrofoam. The envelope generators' insides are more complex but it doesn't work very well.






I can post some mp3s if enough people really want me to but they're annoying to set up because I don't have enough 9v batteries and patch/audio cables, and after all, they're very basic.


But anyways, they're interesting little boxes.
soundcloud.com/vectron
